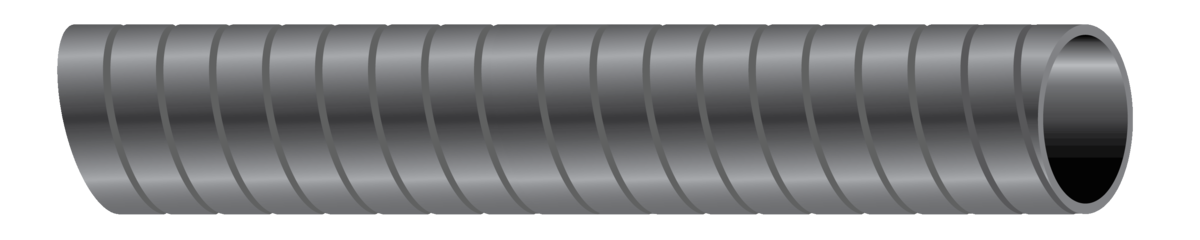

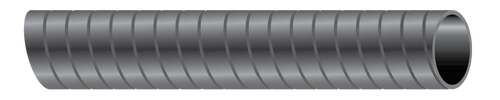

Southwire 1" Ultratite Flexible NonMetallic Counduit Gray 100 ft

Construction

1. PVC: Ultratite® Type NM is manufactured with rigid PVC reinforcement imbedded within a flexible PVC wall. The construction provides excellent impact and crush strength while remaining highly flexible. The conduit resists oils, mild acids and exposure to sunlight.

Standards & References

• UL 1660 Liquid-Tight Flexible Nonmetallic Conduit

• NFPA 70 (National Electrical Code), Article 356 - Liquidtight flexible nonmetallic conduit

Application & Features

Ultratite® Type NM is suitable for the following installations:

• For the installation and protection of electrical conductors

• Motor circuits - for conductors of motor feeders, branch and control circuits.

• Where the conditions of installation, operation, or maintenance require flexibility or protection from liquids, vapors, solids, or weather

• Agricultural buildings per NEC® 547.5

• Used in industrial and commercial applications for conveyors, blowers, cranes, air conditioners, machine tooling and lubrication equipment

• Exposed or concealed installations

• Applications requiring movement, crossover connections, or tight bends

• For direct burial and encased in concrete

• For flexible connections to swimming pool, spa, and hot tub motors per NEC® 680.21(A)(3) & 680.42(A)(1)

• Electric signs and outline lighting supply and secondary-circuit conductors per NEC® 600.7, 600.31 (1000 volts or less) & 600.32 (over 1000 volts)

• Floating building feeders and services per NEC® 553.7

• Boatyards & Marinas in accordance with NEC® 555.13

• Cranes & Hoists in accordance with NEC® 610.11(C)

• For Elevator, Dumbwaiters, Escalators, Moving Walks, Wheel Chair Lifts & Stairway Chair Lifts in accordance with NEC® 620.21 (where expressly permitted)

• Under raised floors in information technology equipment conductors and cables in accordance with NEC® 645.5 (D) & 645.5(D)(2)

• Service entrance in lengths up to six feet per NEC® 230.43(15)

• For containment of 600 Volt and lower potential circuits

• Approved for use in lengths longer than 6 feet per NEC® 356.10(5)

• Motor leads per NEC® 430.145(B)

Hazardous location:

• Class I, Div. 2 - NEC® 501.10(B)(2)

• Class II, Div. 1 - NEC® 502.10(A)(2)

• Class II, Div. 2 - NEC® 502.10(B)(2)

• Class III, Div. 1 - NEC® 503.10(A)(2)

• Class III, Div. 2 - NEC® 503.10(B)

  Ultratite® Type NM Features
• A protective combination of thermoplastic materials formed into a conduit/raceway which seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases, dirt, grease, mineral acids, non-concentrated fixed alkalines, petroleum oils, salt air and spray, and weather

• Smooth interior for easy wire pulling

• UV sunlight resistant jacket

• Rated for temperature range of -30°C to 80°C , 60°C Oil (-22 to +176, 140°F Oil)

• Accepts standard liquid-tight fittings for use with LFNC-B
